Product Description:
|
|
■Tinned ,annealed,stranded or solid copper conductor.
|
|
■PE insulation
|
|
■FR-PE jacketed
|
|
■Filler and paper separator applied.
|
|
■Passes UL VW-1&CUL FT1 vertical flamt test
|
|
說明：
|
|
■導體使用單股或絞線裸銅或鍍錫銅
|
|
■PE絕緣
|
|
■FR-PE被覆
|
|
■裸銅或鍍錫銅絲，纏繞屏蔽
|
|
■額定溫度：80℃額定電壓：30Volts
|
|
■可通過UL VW-1 及 CUL FT2 ，垂直燃燒測試
|
|
Applications:
|
|
■For wiring of lowenergy non-hazardous circuits in a/v Equipment.
|
|
應用：
|
|
■用于低壓的視聽設備內部連接。
|
|
UL Style& CUL Type
|
Cores
芯數
|
Conductor
導體
|
Insulation
Thickness
絕緣厚度
|
Nom.Dia
|
Jacket Thickness
被覆厚度
|
Overall
Diameter
完成外徑
|
Conductor
Resistance at 20℃導體電阻
|
|
線號
|
線數/線徑
|
|
AWG
|
No/mm
|
mm
|
mm
|
mm
|
mm
|
Ω/KM
|
UL21100
CUL
（Stranded)
絞線
|
3C
|
30
|
7/0.10
|
0.18
|
0.70
|
0.51
|
3.40
|
381.00
|
|
4C
|
30
|
7/0.10
|
0.18
|
0.70
|
0.51
|
3.40
|
381.00
|
|
6C
|
30
|
7/0.10
|
0.18
|
0.70
|
0.51
|
3.60
|
381.00
|
|
8C
|
30
|
7/0.10
|
0.18
|
0.70
|
0.51
|
3.80
|
381.00
|
|
9C
|
30
|
7/0.10
|
0.18
|
0.70
|
0.51
|
4.00
|
381.00
|
|
3C
|
28
|
7/0.127
|
0.18
|
0.80
|
0.51
|
3.40
|
239.00
|
|
4C
|
28
|
7/0.127
|
0.18
|
0.80
|
0.51
|
3.40
|
239.00
|
|
6C
|
28
|
7/0.127
|
0.18
|
0.80
|
0.51
|
3.60
|
239.00
|
|
8C
|
28
|
7/0.127
|
0.18
|
0.80
|
0.51
|
3.80
|
239.00
|
|
9C
|
28
|
7/0.127
|
0.18
|
0.80
|
0.51
|
4.00
|
239.00
|
|
以上數據僅供參考，不作為正式的設計依據，產品規格以雙方確認的規格書承認為準！最終解釋權規穩暢電子制品有限公司所有
|

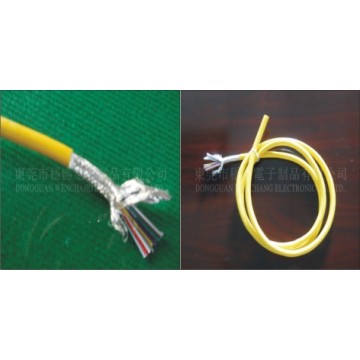

點擊圖片查看原圖
