Product Description:
|
|
■Tinned ,annealed,stranded or solid copper conductor.
|
|
■PE insulation
|
|
■FR-PE jacketed
|
|
■Tinned or bare copper wire, spiral shield
|
|
■Rated temperature:80℃.Rated voltage:30Volts
|
|
■Passes UL VW-1&CUL FT1 vertical flamt test
|
|
說明：
|
|
■導體使用單股或絞線裸銅或鍍錫銅,
|
|
■PE絕緣
|
|
■FR-PE被覆
|
|
■裸銅或鍍錫銅絲，纏繞屏蔽
|
|
■額定溫度：80℃額定電壓：30Volts
|
|
■可通過UL VW-1 及 CUL FT1 ，垂直燃燒測試
|
|
Applications:
|
|
■For wiring of lowenergy non-hazardous circuits in a/v Equipment.
|
|
應用：
|
|
■用于低壓的視聽設備內部連接。
|
|
UL Style& CUL Type
|
Cores
芯數
|
Conductor
導體
|
Insulation
Thickness
絕緣厚度
|
Nom.Dia
|
Spiral shield
纏繞隔離
|
Jacket Thickness
被覆厚度
|
Overall
Diameter
完成外徑
|
Conductor
Resistance at 20℃導體電阻
|
|
線號
|
線數/線徑
|
|
AWG
|
No/mm
|
mm
|
mm
|
NO/mm
|
mm
|
mm
|
Ω/KM
|
UL21088
CUL I A/B
（Stranded)
絞線
|
2C
|
28
|
7/0.127
|
0.4
|
1.20
|
32/0.12
|
0.40
|
2.5×5.0
|
239.00
|
|
26
|
7/0.16
|
0.4
|
1.30
|
33/0.12
|
0.40
|
2.6×5.2
|
150.00
|
|
24
|
11/0.16
|
0.4
|
1.50
|
37/0.12
|
0.40
|
2.7×5.4
|
94.20
|
|
22
|
17/0.16
|
0.4
|
1.70
|
42/0.12
|
0.40
|
3.0×6.0
|
59.40
|
|
3C
|
28
|
7/0.127
|
0.4
|
1.20
|
30/0.12
|
0.40
|
2.5×7.5
|
239.00
|
|
26
|
7/0.16
|
0.4
|
1.30
|
33/0.12
|
0.40
|
2.6×7.8
|
150.00
|
|
以上數據僅供參考，不作為正式的設計依據，產品規格以雙方確認的規格書承認為準！最終解釋權規穩暢電子制品有限公司所有
|

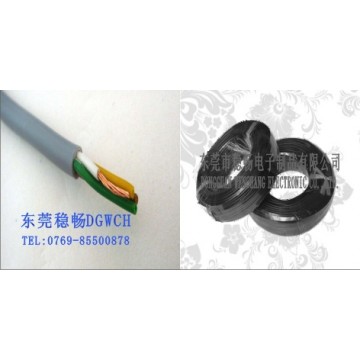

點擊圖片查看原圖
