Product Description:
|
|
■Tinned ,annealed,stranded or solid copper conductor.
|
|
■Color -coded PVC insulation.
|
|
■Rated temperature:80℃ .Rated voltage:300volts
|
|
■Uniform thickness of wire to ensure easy stripping and cutting.
|
|
■Passes UL VW-1&CSA FT1 vertical flamt test
|
|
說明：
|
|
■導體使用單股或絞線裸銅或鍍錫銅
|
|
■PVC絕緣
|
|
■額定溫度：80℃額定電壓：300Volts
|
|
■使用標準厚度，易剝，截斷容易。
|
|
■可通過UL VW-1 及 CSA FT1 ，垂直燃燒測試
|
|
■可使用先絞后鍍（TC）為導體
|
|
Applications:
|
|
■For general purpose internal wiring of electronic and electrical equipment.
|
|
應(yīng)用：
|
|
■用于電子、電器設(shè)備內(nèi)部配線
|
|
UL Style& CSA Type
|
Conductor
導體
|
Insulation
Thickness
絕緣厚度
|
Overall
Diameter
完成外徑
|
Stand Put-up
標準長度
|
Conductor
Resistance at 20℃導體電阻
|
|
線號
|
線數(shù)/線徑
|
英制
|
公制
|
|
AWG
|
No/mm
|
mm
|
mm
|
Ft/coil
|
M/Coil
|
Ω/KM
|
UL1007
CSA FT1 I A
（Stranded)
絞線
|
30
|
7/0.102
|
0.41
|
1.10
|
2000
|
610
|
381.00
|
|
28
|
7/0.127
|
0.41
|
1.20
|
2000
|
610
|
239.00
|
|
26
|
7/0.16
|
0.41
|
1.30
|
2000
|
610
|
150.00
|
|
24
|
11/0.16
|
0.41
|
1.40
|
2000
|
610
|
94.20
|
|
22
|
17/0.16
|
0.41
|
1.60
|
2000
|
610
|
59.40
|
|
20
|
21/0.18
|
0.41
|
1.80
|
2000
|
610
|
36.70
|
|
18
|
34/0.18
|
0.41
|
2.10
|
2000
|
610
|
23.20
|
|
16
|
26/0.25
|
0.41
|
2.40
|
2000
|
610
|
14.60
|
UL1007
CSA FT1 I A
（Top-coated)
先絞后鍍
|
26
|
7/0.16
|
0.41
|
1.30
|
2000
|
610
|
140.00
|
|
24
|
7/0.20
|
0.41
|
1.40
|
2000
|
610
|
88.70
|
|
22
|
7/0.25
|
0.41
|
1.60
|
2000
|
610
|
54.70
|
|
20
|
7/0.31
|
0.41
|
1.80
|
2000
|
610
|
37.10
|
|
18
|
7/0.40
|
0.41
|
2.10
|
2000
|
610
|
23.70
|
|
16
|
7/0.488
|
0.41
|
2.30
|
2000
|
610
|
14.20
|
UL1007
CSA FT1 I A
（Solid)
單股
|
26
|
1/0.404
|
0.41
|
1.25
|
2000
|
610
|
143.00
|
|
24
|
1/0.511
|
0.41
|
1.35
|
2000
|
610
|
89.30
|
|
22
|
1/0.643
|
0.41
|
1.50
|
2000
|
610
|
56.40
|
|
20
|
1/0.813
|
0.41
|
1.65
|
2000
|
610
|
35.20
|
|
18
|
1/1.024
|
0.41
|
1.85
|
2000
|
610
|
22.20
|
|
16
|
1/1.29
|
0.41
|
2.15
|
2000
|
610
|
14.00
|

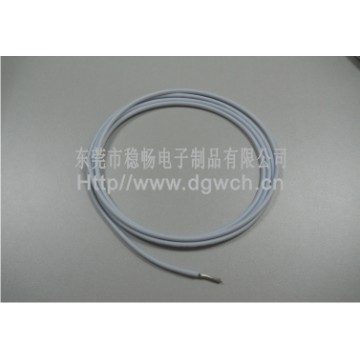

點擊圖片查看原圖
