| Product Description: | |||||||||
| ■Tinned ,annealed,stranded or solid copper conductor. | |||||||||
| ■PP PE FR-PE PVC insulation | |||||||||
| ■PUR jacketed | |||||||||
| ■Tinned or bare copper wire spiral or braid shield | |||||||||
| ■Rated temperature:80℃.Rated voltage:30Volts | |||||||||
| ■Passes UL VW-1&CUL FT1 vertical flamt test | |||||||||
| 說明： | |||||||||
| ■導體使用單股或絞線裸銅或鍍錫銅。 | |||||||||
| ■PP PE FR-PE PVC絕緣 | |||||||||
| ■PUR被覆 | |||||||||
| ■裸銅或鍍錫銅絲，纏繞或編織屏蔽 | |||||||||
| ■額定溫度：80℃額定電壓：30V | |||||||||
| ■可通過UL VW-1 及 CSA FT1 ，垂直燃燒測試 | |||||||||
| Applications: | |||||||||
| ■For internal wiring of computer,audio&video equipment. | |||||||||
| 應用： | |||||||||
| ■用于電腦及視聽設備內部連線. | |||||||||
| UL Style& CUL Type |
Cores 芯數 |
Conductor 導體 |
Insulation Thickness 絕緣厚度 |
Nom.Dia |
shield COVERAGE 屏蔽 覆蓋率 |
Jacket Thickness 被覆厚度 |
Overall Diameter 完成外徑 |
Conductor Resistance at 20℃導體電阻 |
|
| 線號 | 線數/線徑 | ||||||||
| AWG | No/mm | mm | mm | % | mm | mm | Ω/KM | ||
|
UL20236 CUL （Stranded) 絞線 |
2C | 30 | 7/0.100 | 0.23 | 0.80 | >=65 | 0.76 | 3.70 | 381.00 |
| 28 | 7/0.127 | 0.23 | 0.90 | >=65 | 0.76 | 4.00 | 239.00 | ||
| 26 | 7/0.16 | 0.23 | 1.00 | >=65 | 0.76 | 4.20 | 150.00 | ||
| 24 | 11/0.16 | 0.23 | 1.10 | >=65 | 0.76 | 4.40 | 94.20 | ||
| 22 | 17/0.16 | 0.23 | 1.30 | >=65 | 0.76 | 4.70 | 59.40 | ||
| 20 | 21/0.178 | 0.23 | 1.50 | >=65 | 0.76 | 5.20 | 36.70 | ||
| 18 | 34/0.178 | 0.23 | 1.80 | >=65 | 0.76 | 5.80 | 23.20 | ||
| 16 | 26/0.25 | 0.23 | 2.00 | >=65 | 0.76 | 6.20 | 14.60 | ||
| 3C | 30 | 7/0.100 | 0.23 | 0.80 | >=65 | 0.76 | 3.80 | 381.00 | |
| 28 | 7/0.127 | 0.23 | 0.90 | >=65 | 0.76 | 4.00 | 239.00 | ||
| 26 | 7/0.16 | 0.23 | 1.00 | >=65 | 0.76 | 4.20 | 150.00 | ||
| 24 | 11/0.16 | 0.23 | 1.10 | >=65 | 0.76 | 4.50 | 94.20 | ||
| 22 | 17/0.16 | 0.23 | 1.30 | >=65 | 0.76 | 4.90 | 59.40 | ||
| 20 | 21/0.178 | 0.23 | 1.50 | >=65 | 0.76 | 5.40 | 36.70 | ||
| 18 | 34/0.178 | 0.23 | 1.80 | >=65 | 0.76 | 6.00 | 23.20 | ||
| 4C | 30 | 7/0.100 | 0.23 | 0.80 | >=65 | 0.76 | 4.00 | 381.00 | |
| 28 | 7/0.127 | 0.23 | 0.90 | >=65 | 0.76 | 4.30 | 239.00 | ||
| 26 | 7/0.16 | 0.23 | 1.00 | >=65 | 0.76 | 4.50 | 150.00 | ||
| 24 | 11/0.16 | 0.23 | 1.10 | >=65 | 0.76 | 4.80 | 94.20 | ||
| 22 | 17/0.16 | 0.23 | 1.30 | >=65 | 0.76 | 5.30 | 59.40 | ||
| 20 | 21/0.178 | 0.23 | 1.50 | >=65 | 0.76 | 5.60 | 36.70 | ||
| 5C | 30 | 7/0.100 | 0.23 | 0.80 | >=65 | 0.76 | 4.30 | 381.00 | |
| 28 | 7/0.127 | 0.23 | 0.90 | >=65 | 0.76 | 4.50 | 239.00 | ||
| 26 | 7/0.16 | 0.23 | 1.00 | >=65 | 0.76 | 4.80 | 150.00 | ||
| 24 | 11/0.16 | 0.23 | 1.10 | >=65 | 0.76 | 5.00 | 94.20 | ||
| 22 | 17/0.16 | 0.23 | 1.30 | >=65 | 0.76 | 5.60 | 59.40 | ||
| 6C | 30 | 7/0.100 | 0.23 | 0.80 | >=65 | 0.76 | 4.50 | 381.00 | |
| 28 | 7/0.127 | 0.23 | 0.90 | >=65 | 0.76 | 4.80 | 239.00 | ||
| 26 | 7/0.16 | 0.23 | 1.00 | >=65 | 0.76 | 5.20 | 150.00 | ||
| 24 | 11/0.16 | 0.23 | 1.10 | >=65 | 0.76 | 5.40 | 94.20 | ||
| 以上線材數據僅供參考，不作為正式的設計依據，產品規格以雙方確認的規格書承認為準！最終解釋權歸穩暢電子制品有限公司所有 | |||||||||

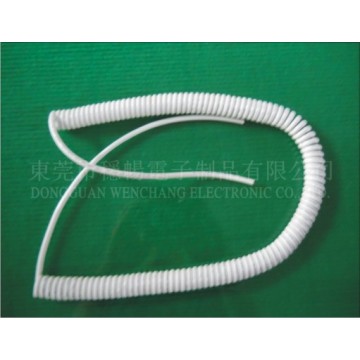

點擊圖片查看原圖
