| Product Description: | Applications: | ||||||||
| ■Tinned,annealed,stranded or solid copper conductor. | ■External interconnection or internal wiring of | ||||||||
| ■TPE OR XL-PE insulation | electronic equipment. | ||||||||
| ■TPE jacketed | |||||||||
| ■Tinned or bare copper wire spiral or braid shield | 應用： | ||||||||
| ■Rated temperature:105℃.Rated voltage:600V OR 1000V | ■外部互連或電子設備的內部布線 | ||||||||
| ■Passes UL VW-1&CUL FT1 vertical flame test | Construction: | ||||||||
| 說明： | 構造： | ||||||||
| ■導體使用單股或絞線裸銅或鍍錫銅。 | |||||||||
| ■TPE或者XL-PE絕緣 | |||||||||
| ■TPE被覆 | |||||||||
| ■裸銅或鍍錫銅絲，纏繞或編織屏蔽 | |||||||||
| ■額定溫度：105℃額定電壓：600V 或者1000V | |||||||||
| ■可通過UL VW-1 及 CUL FT1 ，垂直燃燒測試 | |||||||||
| UL Style& CUL Type | Cores | Conductor |
Insulation Thickness |
Nom.Dia | Shield Coverage | Jacket Thickness |
Overall Dimeter |
Conductor Resistance at 20℃ |
|
| AWG | No/mm | mm | mm | % | mm | mm | Ω/KM | ||
|
UL21184 CUL （Stranded) |
2C | 18 | 34/0.178 | 0.76 | 2.80 | >=65 | 0.76 | 7.80 | 23.20 |
| 16 | 26/0.25 | 0.76 | 3.10 | >=65 | 0.76 | 8.40 | 14.60 | ||
| 14 | 41/0.25 | 0.76 | 3.50 | >=65 | 0.76 | 9.20 | 8.96 | ||
| 12 | 65/0.25 | 0.76 | 4.00 | >=65 | 0.76 | 10.2 | 5.64 | ||
|
UL21184 CUL （Stranded) |
3C | 18 | 34/0.178 | 0.76 | 2.80 | >=65 | 0.76 | 8.20 | 23.20 |
| 16 | 26/0.25 | 0.76 | 3.10 | >=65 | 0.76 | 8.80 | 14.60 | ||
| 14 | 41/0.25 | 0.76 | 3.50 | >=65 | 0.76 | 9.80 | 8.96 | ||
| 12 | 65/0.25 | 0.76 | 4.00 | >=65 | 0.76 | 11.00 | 5.64 | ||
|
UL21184 CUL （Stranded) |
4C | 18 | 34/0.178 | 0.76 | 2.80 | >=65 | 0.76 | 9.00 | 23.20 |
| 16 | 26/0.25 | 0.76 | 3.10 | >=65 | 0.76 | 9.80 | 14.60 | ||
| 14 | 41/0.25 | 0.76 | 3.50 | >=65 | 0.76 | 10.80 | 8.96 | ||
| 12 | 65/0.25 | 0.76 | 4.00 | >=65 | 0.76 | 12.00 | 5.64 | ||
| 以上數據僅供參考，不作為正式的設計依據，產品規格以雙方確認的規格書承認為準！最終解釋權歸穩暢電子制品有限公司所有。 | |||||||||

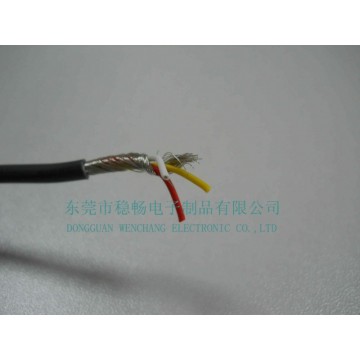

點擊圖片查看原圖
