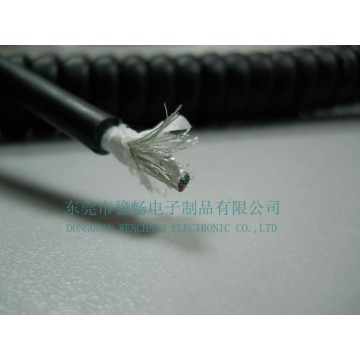

Product Description:						Applications:
■Tinned,annealed,stranded or solid copper conductor.						■Internal wiring or external inter-connection of
■TPE XL-PE FR-PE insulation						electronic equipment (such as desk-type calculators,
■TPE jacketed						dictating machines, or X-ray equipment).
■Tinned or bare copper wire spiral or braid shield						應用：
■Rated temperature:105℃.Rated voltage:300V OR 600V						■內部或外部電子設備間的連接（如桌面型計算器，口授機或X射線設備）。
■Passes UL VW-1&CUL FT1 vertical flame test						Construction:
說明：						構造：
■導體使用單股或絞線裸銅或鍍錫銅。
■TPE，XL-PE FR-PE絕緣
■TPE被覆
■裸銅或鍍錫銅絲，纏繞或編織屏蔽
■額定溫度：105℃額定電壓：300V或者600V
■可通過UL VW-1 及 CUL FT1 ，垂直燃燒測試

UL Style& CUL Type	Cores	Conductor		Insulation Thickness	Nom.Dia	Shield Coverage	Jacket Thickness	Overall Dimeter	Conductor Resistance at 20℃
UL Style& CUL Type	Cores	AWG	No/mm	mm	mm	%	mm	mm	Ω/KM
UL21002 CUL （Stranded)	2C	30	7/0.100	0.38	1.10	>=65	0.76	4.40	381.00
		28	7/0.127	0.38	1.20	>=65	0.76	4.50	239.00
		26	7/0.16	0.38	1.30	>=65	0.76	4.60	150.00
		24	11/0.16	0.38	1.40	>=65	0.76	4.90	94.20
		22	17/0.16	0.38	1.60	>=65	0.76	5.10	59.40
		20	21/0.178	0.38	1.80	>=65	0.76	5.50	36.70
		18	34/0.178	0.38	2.10	>=65	0.76	6.10	23.20
		16	26/0.25	0.38	2.40	>=65	0.76	6.90	14.60
UL21002 CUL （Stranded)	3C	30	7/0.100	0.38	1.10	>=65	0.76	4.50	381.00
		28	7/0.127	0.38	1.20	>=65	0.76	4.70	239.00
		26	7/0.16	0.38	1.30	>=65	0.76	4.90	150.00
		24	11/0.16	0.38	1.40	>=65	0.76	5.10	94.20
		22	17/0.16	0.38	1.60	>=65	0.76	5.30	59.40
		20	21/0.178	0.38	1.80	>=65	0.76	6.00	36.70
		18	34/0.178	0.38	2.10	>=65	0.76	6.60	23.20
UL21002 CUL （Stranded)	4C	30	7/0.100	0.38	1.10	>=65	0.76	4.70	381.00
		28	7/0.127	0.38	1.20	>=65	0.76	4.90	239.00
		26	7/0.16	0.38	1.30	>=65	0.76	5.20	150.00
		24	11/0.16	0.38	1.40	>=65	0.76	5.60	94.20
		22	17/0.16	0.38	1.60	>=65	0.76	5.90	59.40
		20	21/0.178	0.38	1.80	>=65	0.76	6.40	36.70
UL21002 CUL （Stranded)	5C	30	7/0.100	0.38	1.10	>=65	0.76	4.90	381.00
		28	7/0.127	0.38	1.20	>=65	0.76	5.10	239.00
		26	7/0.16	0.38	1.30	>=65	0.76	5.20	150.00
		24	11/0.16	0.38	1.40	>=65	0.76	5.60	94.20
		22	17/0.16	0.38	1.60	>=65	0.76	6.20	59.40
UL21002 CUL （Stranded)	6C	30	7/0.100	0.38	1.10	>=65	0.76	5.10	381.00
		28	7/0.127	0.38	1.20	>=65	0.76	5.50	239.00
		26	7/0.16	0.38	1.30	>=65	0.76	5.90	150.00
		24	11/0.16	0.38	1.40	>=65	0.76	6.20	94.20
以上數據僅供參考，不作為正式的設計依據，產品規格以雙方確認的規格書承認為準！最終解釋權歸穩暢電子制品有限公司所有。
