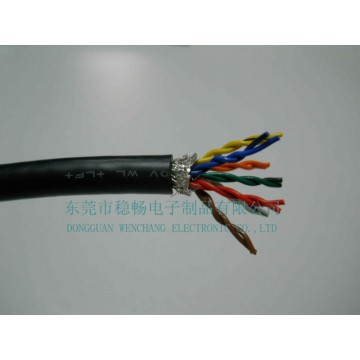

Product Description:						Applications:
■Tinned,annealed,stranded or solid copper conductor.						■External interconnection of electronic equipment
■TPE insulation						where the acceptability of the combination is to be
■TPE jacketed						accepted by Underwriters Laboratories Inc.
■Tinned or bare copper wire spiral or braid shield						應用：
■Rated temperature:105℃.Rated voltage:600V						■電子設備相結合的可接受性是由保險商實驗室公司接受外部互連
■Passes UL VW-1&CUL FT1 vertical flame test						Construction:
說明：						構造：
■導體使用單股或絞線裸銅或鍍錫銅。
■TPE絕緣
■TPE被覆
■裸銅或鍍錫銅絲，纏繞或編織屏蔽
■額定溫度：105℃額定電壓：600V
■可通過UL VW-1 及 CUL FT1 ，垂直燃燒測試

UL Style& CUL Type	Cores	Conductor		Insulation Thickness	Nom.Dia	Shield Coverage	Jacket Thickness	Overall Dimeter	Conductor Resistance at 20℃
UL Style& CUL Type	Cores	AWG	No/mm	mm	mm	%	mm	mm	Ω/KM
UL20904 CUL （Stranded)	2C	20	21/0.178	0.76	2.5	>=65	2.032	9.6	36.7
		18	34/0.178	0.76	2.80	>=65	2.032	10.20	23.20
		16	26/0.25	0.76	3.10	>=65	2.032	10.80	14.60
		14	41/0.25	0.76	3.50	>=65	2.032	11.60	8.96
		12	65/0.25	0.76	4.00	>=65	2.032	12.6	5.64
UL20904 CUL （Stranded)	3C	18	34/0.178	0.76	2.80	>=65	2.032	10.60	23.20
		16	26/0.25	0.76	3.10	>=65	2.032	11.20	14.60
		14	41/0.25	0.76	3.50	>=65	2.032	12.20	8.96
		12	65/0.25	0.76	4.00	>=65	2.032	13.4	5.64
UL20904 CUL （Stranded)	4C	18	34/0.178	0.76	2.80	>=65	2.032	11.40	23.20
		16	26/0.25	0.76	3.10	>=65	2.032	12.20	14.60
		14	41/0.25	0.76	3.50	>=65	2.032	13.20	8.96
		12	65/0.25	0.76	4.00	>=65	2.032	14.4	5.64
以上數據僅供參考，不作為正式的設計依據，產品規格以雙方確認的規格書承認為準！最終解釋權歸穩暢電子制品有限公司所有。
