| Product Description: | Applications: | ||||||
| ■Conductor：26AWG---18AWG | ■Apply to Household appliance、lumination&Lighting | ||||||
| ■Tinned,annealed,stranded or solid copper conductor. | metallurgy&Headlamp、electric machines、tempurature | ||||||
| ■Silicone Rubber insulation,Braid:Fiberglass+Silicone | sensor、Military series、metallurgy Chemical series、 | ||||||
| ■Rated temperature:200℃.Rated voltage:600volts | Motor cars&Ships、Electrical installation | ||||||
| ■Uniform thickness of wire to ensure easy stripping and cutting. | 應用： | ||||||
| ■Passes UL VW-1&CUL FT1 vertical flame test | ■適用于家用電器、照明燈具、電子設備、溫度傳感器、 | ||||||
| ■Top coated conductor is available | 航天、航空、軍工產品、冶金化工、汽車船船、 | ||||||
| 說明： | 電力安裝等連接線。 | ||||||
| ■導體：26AWG---18AWG | Construction: | ||||||
| ■導體使用單股或絞線裸銅或鍍錫銅 | 構造： | ||||||
| ■硅橡膠絕緣,編織：玻纖+硅樹脂 | |||||||
| ■額定溫度：200℃額定電壓：600Volts | |||||||
| ■使用標準厚度，易剝，截斷容易。 | |||||||
| ■可通過UL VW-1 及 CUL FT1 ，垂直燃燒測試 | |||||||
| ■可使用先絞后鍍（TC）為導體 | |||||||
| UL Style& Cul Type | Conductor |
Insulation Thickness |
Overall Diameter |
Standard Put-up |
Conductor Resistance at 20℃ |
||
| AWG | No/mm | mm | mm | Ft/coil | M/Coil | Ω/KM | |
|
UL3172 CUL AWM I A （Stranded) |
26 | 7/0.16 | 0.76 | 2.38 | 2000 | 610 | 150 |
| 24 | 7/0.20 | 0.76 | 2.51 | 2000 | 610 | 94.2 | |
| 11/0.16 | 0.76 | 2.51 | 2000 | 610 | |||
| 22 | 7/0.25 | 0.76 | 2.67 | 2000 | 610 | 59.4 | |
| 17/0.16 | 0.76 | 2.67 | 2000 | 610 | |||
| 20 | 7/0.31 | 0.76 | 2.84 | 2000 | 610 | 36.70 | |
| 21/0.178 | 0.76 | 2.84 | 2000 | 610 | |||
| 18 | 7/0.39 | 0.76 | 3.09 | 1000 | 305 | 23.20 | |
| 34/0.178 | 0.76 | 3.09 | 1000 | 305 | |||
|
UL3172 CUL AWM I A （Stranded) |
26 | 1/0.40 | 0.76 | 2.22 | 2000 | 610 | 140 |
| 24 | 1/0.51 | 0.76 | 2.33 | 2000 | 610 | 87.5 | |
| 22 | 1/0.64 | 0.76 | 2.46 | 2000 | 610 | 55.0 | |
| 20 | 1/0.81 | 0.76 | 2.64 | 2000 | 610 | 34.6 | |
| 18 | 1/1.02 | 0.76 | 2.84 | 2000 | 610 | 21.8 | |
| 以上數據僅供參考，不作為正式的設計依據，產品規格以雙方確認的規格書承認為準！最終解釋權歸穩暢電子制品有限公司所有。 | |||||||

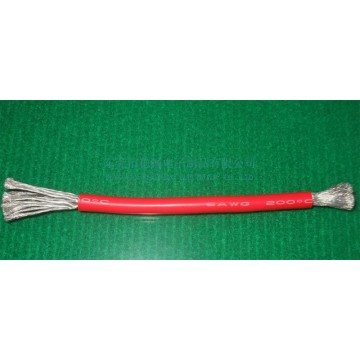

點擊圖片查看原圖
